Additel 997 Handheld Hydraulic Pressure Pump
Price on request

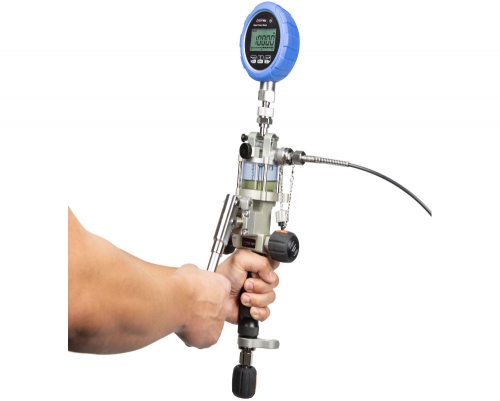

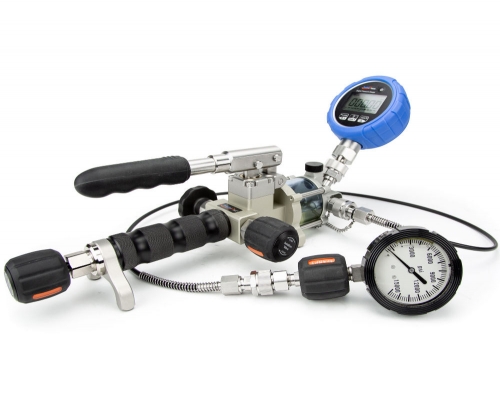

The ADT997 Handheld Hydraulic Pressure Pump delivers up to 10,000 psi (700 bar) using a dual-stage pre-pressure piston for efficiency and ease of use.
- Product description
- Extra information
- Video
- Downloads
-
The ADT997 Handheld Hydraulic Pressure Pump delivers up to 10,000 psi (700 bar) using a dual-stage pre-pressure piston for efficiency and ease of use. Its lever-type pressurization ensures quick stabilization, while a fine adjust screw enables precise pressure adjustments. Due to its adjustable reference port and dual rubber grips, the ADT997 allows for operating positions to be utilized, making it a modern upgrade to traditional handheld pumps. The ADT997 can be operated using mineral oil, deionized water, hydraulic oil, and more.
Features- Portable: Only 4 lbs (1.9 kg)
- Durable and Minimal Maintenance: Custom machined to handle rugged use while remaining leak-free
- Easy-to-use:Dual action piston allows for higher pressure with less effort

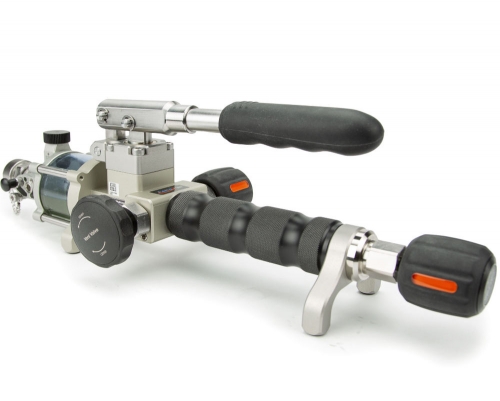

- Multiple Operating Positions: Use either horizontally or vertically with the adjustable reference port and dual rubber grips

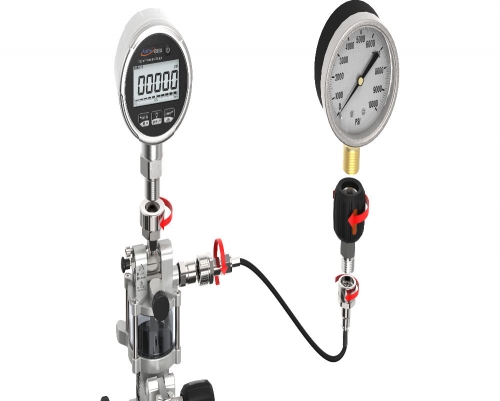

- Hand-tight Quick Connectors: Included hose features hand tight quick connectors for easy swapping of DUTs
-
• Media:
Hydraulic oil, mineral oil, transformer oil, alcohol, antifreeze, Deionzed Water etc. Other medium need contact Eurotron• Generated Pressure Range:
up to 10.000 psi (700 bar)• Adjustment Resolution:
100 Pa (1 mbar)
• Maximum load volume:
100 ml
• Maximum volume of fine adjustment:
1.5 ml
• Port filters:
Standard port: 150µm quick removal filter
Pump air intake port: 100µm quick removal filter
Pressure outlet: 150µm quick release filter• Material:
Ram/adapters: SS
Body: SS, aluminum, UPVC
Seals: Buna-N, PTFE, Copper Alloy• Dimensions:
Height: 5" (128 mm)
Base: 15,2" (385 mm) x 6.5" (166 mm)• Weight:
4.19 lb (1.9 kg)• Warranty:
1 year -
Documents:
File name Upload Date Size Additel 997 Handheld Hydraulic Pressure Test Pump Datasheet 2025.2.20 0.7 MB
